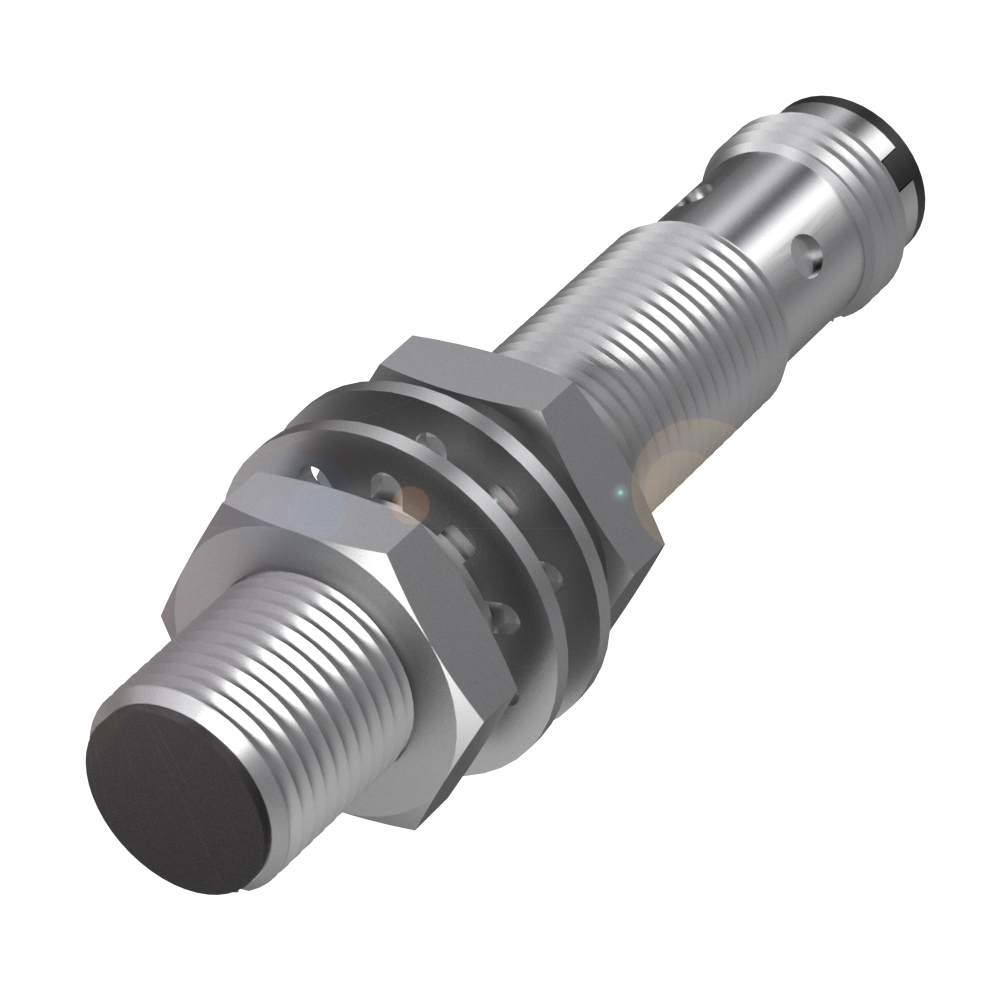

Balluff - BES0059- M12 Inductive Sensor 4mm NPN

Excluding GST

M12 inductive sensor, 4mm, NPN normally open (NO), Shielded
Brass, Nickel-free coated, Connector M12x1-Male, 4-pin, 10...30 VDC

BES M12MI-NSC40B-S04G

Dimension - Ø 12 x 65 mm

Style Housing - M12x1

Installation - for flush mounting

Range - 4 mm

Switching output - NPN normally open (NO)

Switching frequency - 2500 Hz

Housing material - Brass, Nickel-free coated

Material sensing surface - PBT

Connection - Connector, M12x1-Male, 4-pin

Operating voltage Ub - 10...30 VDC

Ambient temperature - -25...70 °C

IP rating - IP68

Approval/Conformity

CE

UKCA

cULus
WEEE
