Balluff - BCS00NH M30 Capacitive Sensor
Excluding GST

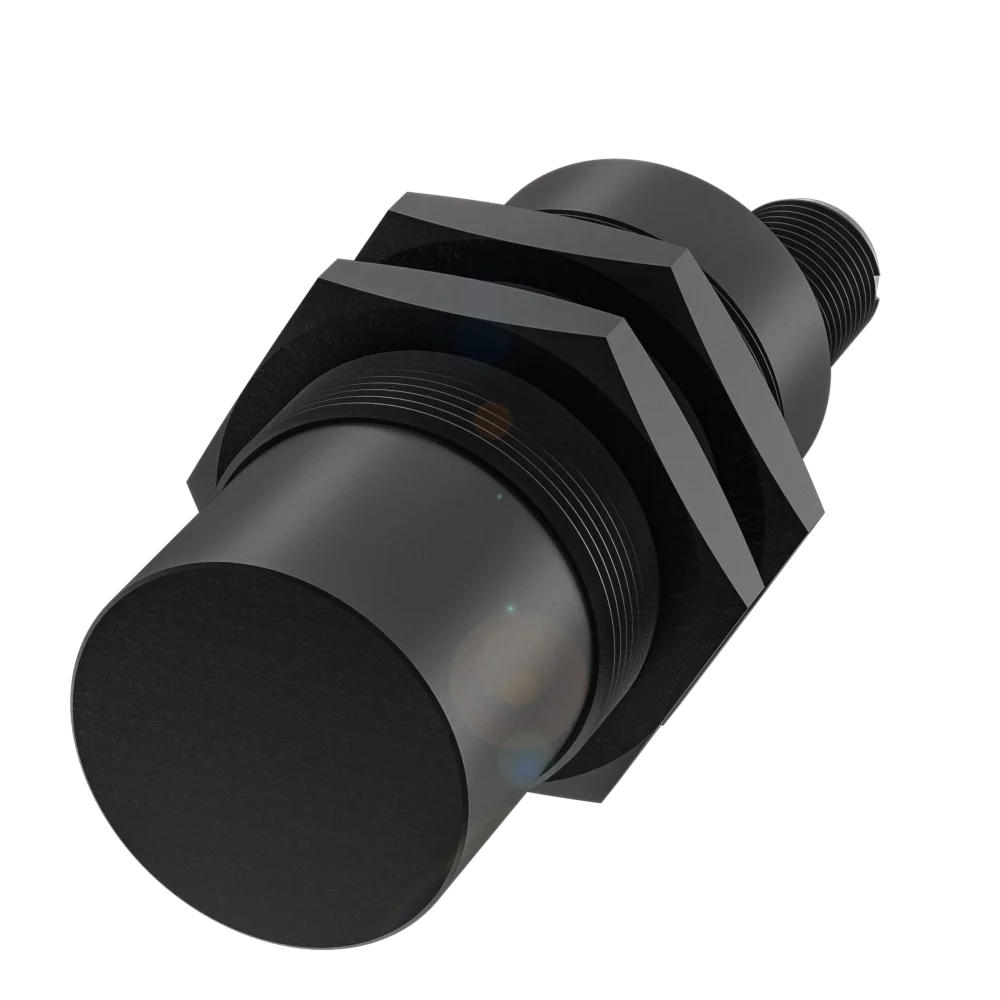

M30 Capacitive Sensor, 1-25mm, PNP(NO), Plastic(PBT), M12x1-Male, 4 Pin, 10-30VDC

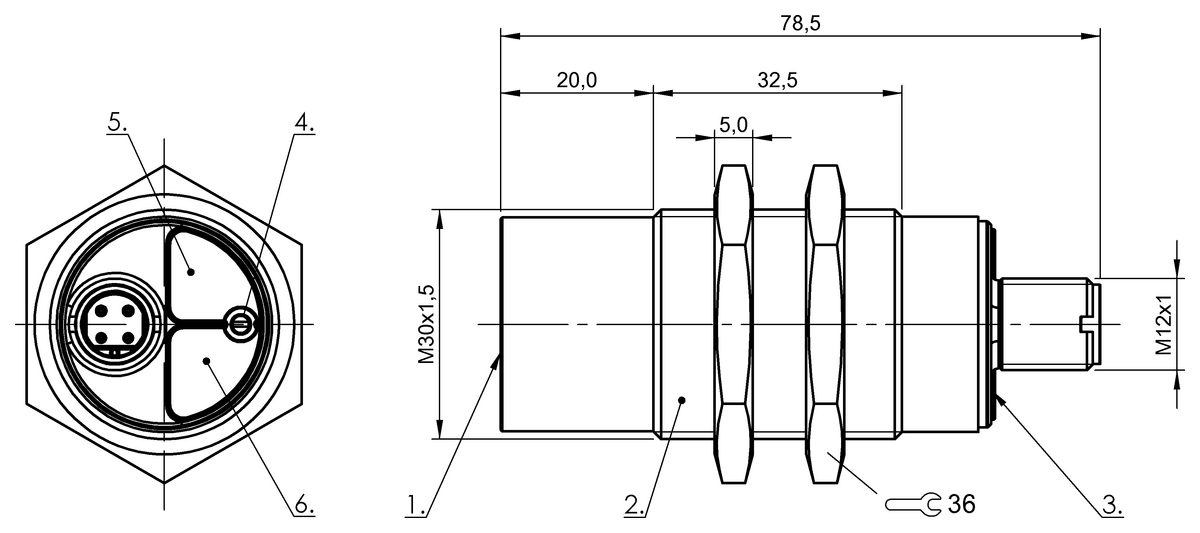

Dimension - Ø 30 x 78.5 mm
Series - M30
Installation - non-flush
Connection - Connector, M12x1-Male, 4-pin
Switching output - PNP normally open (NO)
Switching frequency - 100 Hz
Sensitivity - Switching distance adjustable
Housing material - PBT
Material sensing surface - PBT
Ambient temperature - -25...85 °C
Operating voltage Ub - 10...30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
IP rating - IP67
