Balluff - BES0068 M12 Inductive sensor 4mm PNP
Excluding GST
M12 inductive sensor, 4mm, PNP normally open (NO), Shielded
Brass, Nickel-free coated, Connector M12x1-Male, 4-pin, 10...30 VDC

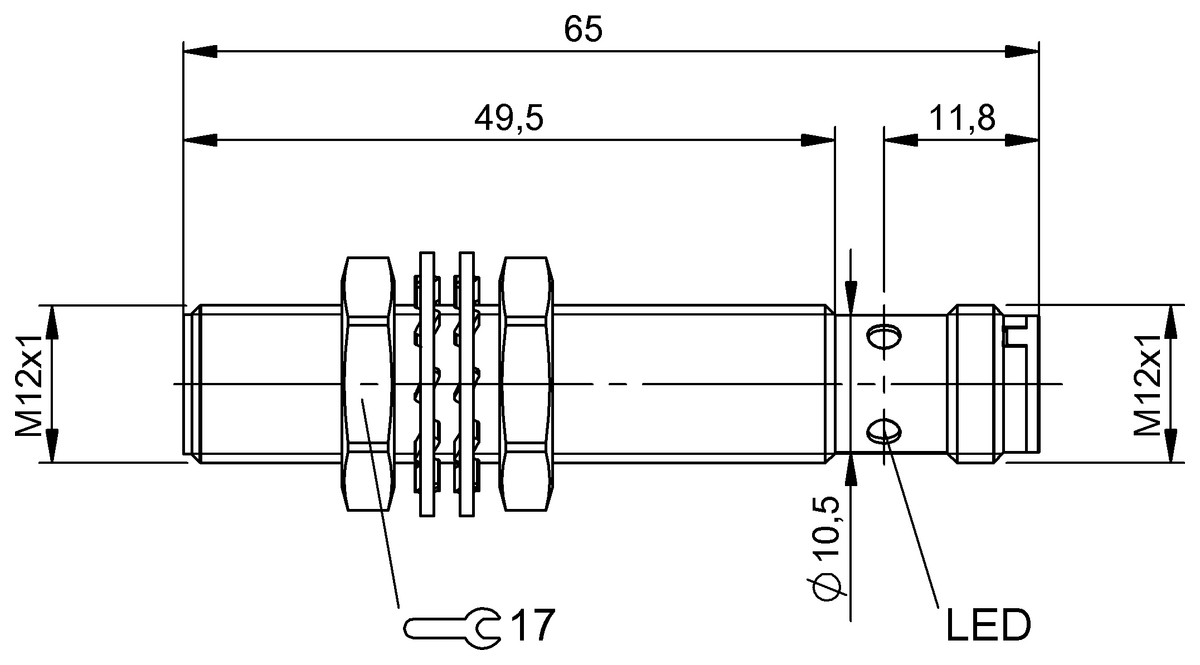

Dimension - Ø 12 x 65 mm
Style Housing - M12x1
Installation - for flush mounting
Range - 4 mm
Switching output - PNP normally open (NO)
Switching frequency - 2500 Hz
Housing material - Brass, Nickel-free coated
Material sensing surface - PBT
Connection - Connector, M12x1-Male, 3-pin
Operating voltage Ub - 10...30 VDC
Ambient temperature - -25...70 °C
IP rating - IP68
Approval/Conformity
CE
UKCA
cULus
WEEE
