Balluff - BES004F- M12 Inductive Sensor 8mm NPN

Excluding GST

M12 inductive sensor, 8mm, NPN normally open (NO), Non-Shielded
Brass, Nickel-free coated, Connector M12x1-Male, 4-pin, 10...30 VDC

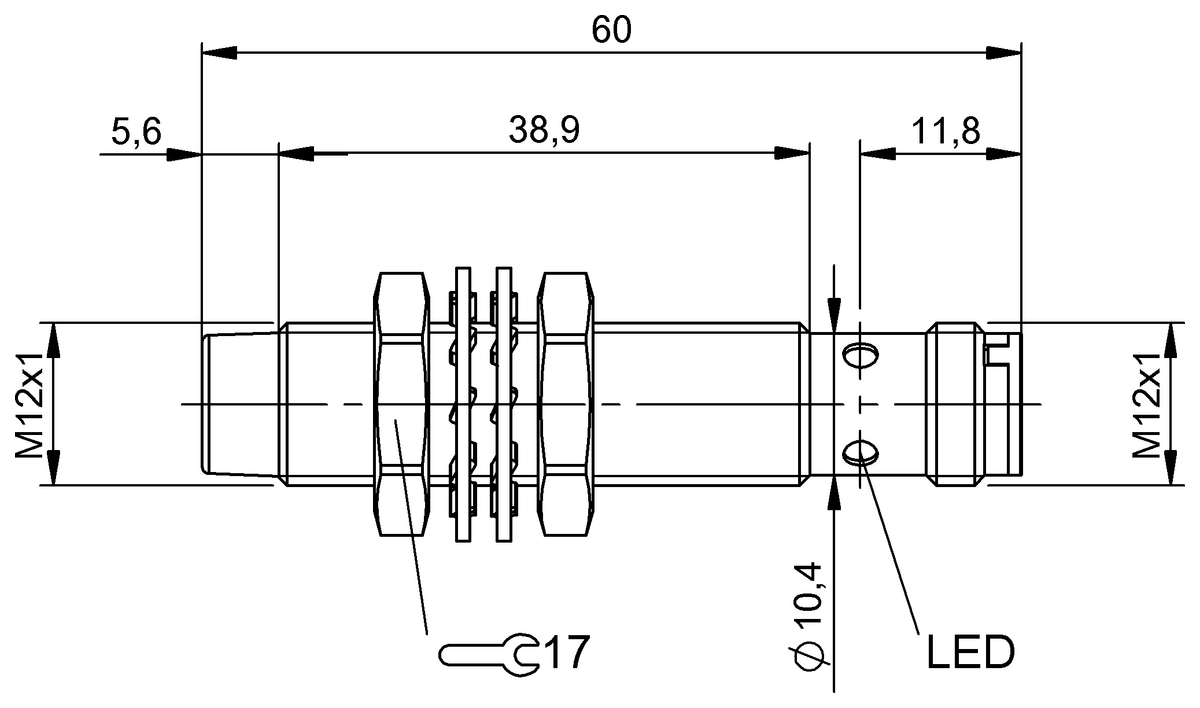

Dimension - Ø 12 x 60 mm

Style Housing - M12x1

Installation - non-flush

Range - 8 mm

Switching output - NPN normally open (NO)

Switching frequency - 1000 Hz

Housing material - Brass, Nickel-free coated

Material sensing surface - PBT

Connection - Connector, M12x1-Male, 4-pin

Operating voltage Ub - 10...30 VDC

Ambient temperature -25...70 °C

IP rating - IP68

Approval/Conformity

CE
UKCA
cULus
WEEE
